GB /T 879.3 - 2018Spring-Type Straight Pins-Coiled,Heavy Duty

简体 | 繁體 | FastenerExpo |

GB /T 879.3 - 2018

Unit: mm

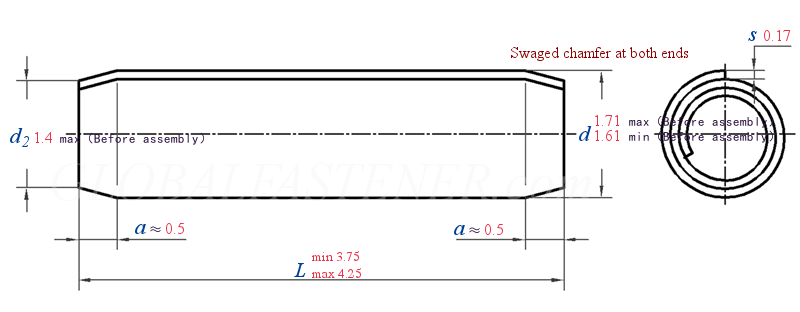

GB /T 879.3 - 2018 Spring-Type Straight Pins-Coiled,Heavy Duty

Unit: mm

Find suppliers

Download

GBT 879.3_Φ1.5X4

Download this CAD model

GB /T 879.3 - 2018 Spring-Type Straight Pins-Coiled,Heavy Duty

Nominal Diameter
d

Φ1.5

d	max（Before assembly）
d	min（Before assembly）
d₂	max（Before assembly）
a	≈
s
Minimum Double Shear,kN ^①	1
Minimum Double Shear,kN ^①	2

1.71

1.61

1.4

0.5

0.17

1.9

1.45

thousand-piece steel weight≈kg

0.042
