ISO 13918 (IT) - 2017Stud Welding with Tip Ignition - Stud with Internal Thread - Type IT

| 简体 | 繁體 |

ISO 13918 (IT) - 2017

Unit: mm

ISO 13918 IT - 2017 Stud Welding With Tip Ignition - Stud With Internal Thread - Type IT

Unit: mm

Find suppliers

Download

ISO 13918IT_M3X10

Download this CAD model

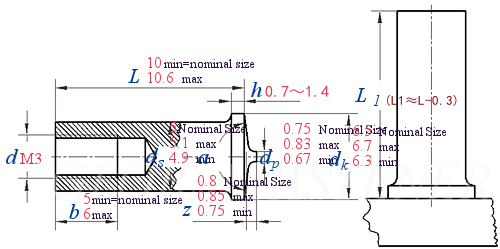

ISO 13918 IT - 2017 Stud Welding With Tip Ignition - Stud With Internal Thread - Type IT

Thread Specifications
d

M3
×10

P	Pitch
L	min=nominal size
L	max
b	min=nominal size
b	max
d_k	Nominal Size
	max
	min
d_s	Nominal Size
	max
	min
d_p	Nominal Size
	max
	min
z	Nominal Size
	max
	min
h

0.5
10
10.6
5
6
6.5
6.7
6.3
5
5.1
4.9
0.75
0.83
0.67
0.8
0.85
0.75
0.7～1.4
