DIN EN ISO 10669 (L) - 1999

Unit: mm

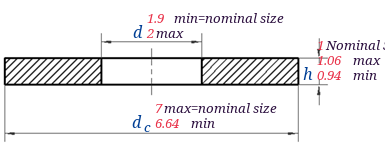

DIN EN ISO 10669 L - 1999 Plain Washers For Tapping Screw And Washer Assemblies—Large Series

Unit: mm

Find suppliers

Download

DIN EN ISO 10669L_ST2.2

Download this CAD model

DIN EN ISO 10669 L - 1999 Plain Washers For Tapping Screw And Washer Assemblies—Large Series

Thread Size

ST2.2

d	min=nominal size
	max
d_c	max=nominal size
	min
h	Nominal Size
	max
	min

1.9

2

7

6.64

1

1.06

0.94
