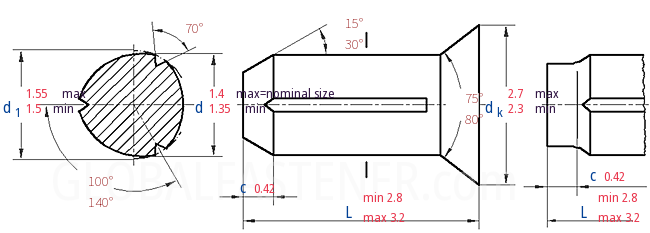

DIN EN ISO 8747 - 1998 Grooved Pins With Countersunk Head

Unit: mm

Find suppliers

Download

DIN EN ISO 8747A_Φ1.4X3

Download this CAD model

DIN EN ISO 8747B_Φ1.4X3

Download this CAD model

DIN EN ISO 8747 - 1998 Grooved Pins With Countersunk Head

Nominal Diameter
d

Φ1.4

d	max=nominal size
	min
d_k	max
	min
c
d₁	max
	min

1.4

1.35

2.7

2.3

0.42

1.55

1.5
