DIN 928 - 2013

Unit: mm

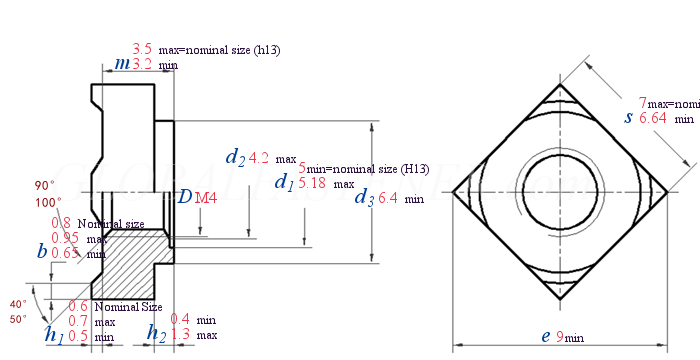

DIN 928 - 2013 Square Weld Nuts

Unit: mm/inch

Find suppliers

Download

DIN928@simple-P0.7_M4

Download this CAD model

DIN928-P0.7_M4

Download this CAD model

DIN 928 - 2013 Square Weld Nuts

Thread Size
D

M4

P	Coarse Thread
	Fine Thread -1
	Fine Thread -2
b	Nominal size
	max
	min
d₁	min=nominal size (H13)
d₁	max
d₂	max
d₃	min
e	min
h₁	Nominal Size
	max
	min
h₂	min
h₂	max
m	max=nominal size (h13)
m	min
s	max=nominal size (h13)
s	min
per 1000 units≈kg
Ensure the load(N)	Coarse Thread
	Fine Thread -1
	Fine Thread -2

0.7
/
/
0.8
0.95
0.65
5
5.18
4.2
6.4
9
0.6
0.7
0.5
0.4
1.3
3.5
3.2
7
6.64
0.81
6800
-
-
