DIN 1587 - 2014Hexagon Domed Cap Nuts, High Type

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

DIN 1587 - 2014

Unit: mm

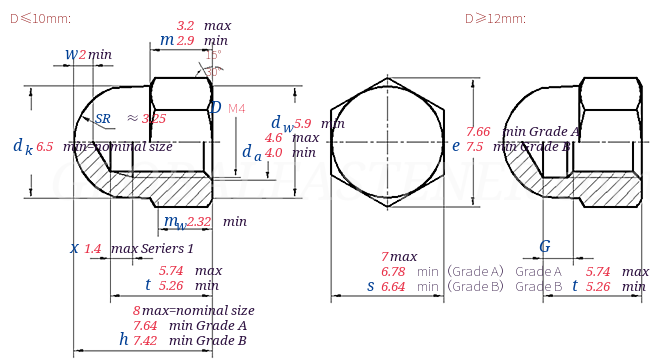

DIN 1587 - 2014 Hexagon Domed Cap Nuts, High Type

Unit: mm

Find suppliers

Download

DIN 1587 P0.7_M4

Download this CAD model

DIN 1587 - 2014 Hexagon Domed Cap Nuts, High Type

Thread Size
D

M4

P		Seriers 1	Coarse thread
		Seriers 2	Fine thread
		Seriers 3	Fine thread
d_a		max
		min
d_k		min=nominal size
d_w		min
e		Grade A	min
		Grade B	min
x		Seriers 1	max
		Seriers 2	max
		Seriers 3	max
G		Seriers 1
		Seriers 2
		Seriers 3
h		max=nominal size
		Grade A	min
		Grade B	min
m		max
		min
m_w		min
SR		≈
s		max
		Grade A	min（Grade A）
		Grade B	min（Grade B）
t		max
		min
w		min
per 1000 units≈kg

0.7
/
/
4.6
4.0
6.5
5.9
7.66
7.5
1.4
/
/
/
/
/
8
7.64
7.42
3.2
2.9
2.32
3.25
7
6.78
6.64
5.74
5.26
2
/
