DIN 981 (KM) - 2009

Unit: mm

DIN 981 KM - 2009 Locknut of Type KM..., KML... or HM...T,for Use With Type MB... Lockwasher as in Din 5406

Unit: mm

Find suppliers

Download

DIN981@simple_M10KM0

Download this CAD model

DIN981_M10KM0

Download this CAD model

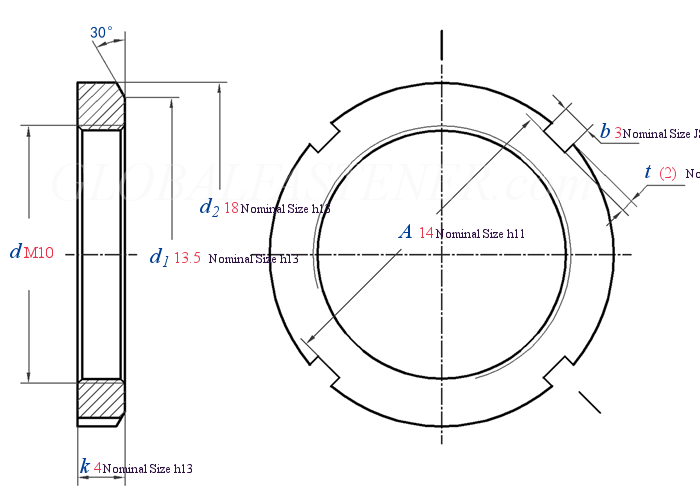

DIN 981 KM - 2009 Locknut of Type KM..., KML... or HM...T,for Use With Type MB... Lockwasher as in Din 5406

Thread Size
d

M10
KM0

P		Pitch
d₂		h13	Nominal Size
d₁		h13	Nominal Size
k		h13	Nominal Size
b		JS14	Nominal Size
t ^①		H17	Nominal Size
A ^①		h11	Nominal Size
Code
Type of Suitable Lockwasher

0.75
18
13.5
4
3
(2)
14
KM 0
MB 0
