ASME B 18.31.2 - 2014

Unit: inch

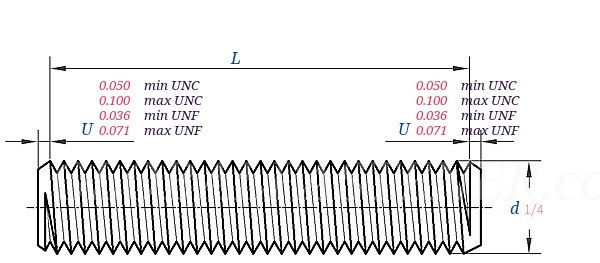

ASME B 18.31.2 - 2014 Continuous Thread Stud（A193 / A320 / A437 / A453/A540/A1014）(Inch Series) [Table 1]

Unit: inch

Find suppliers
ASME B 18.31.2-T1-PP-20_1/4X20
Download this CAD model
ASME B 18.31.2 - 2014 Continuous Thread Stud（A193 / A320 / A437 / A453/A540/A1014）(Inch Series) [Table 1]
Thread Size
d 		1/4
d
PP UNC
UNF
8UN
U UNC min
max
UNF min
max
8UN min
max
0.2500
20
28
-
0.050
0.100
0.036
0.071
-
-
