DIN EN ISO 8746 - 1998Grooved Pins with Round Head

| 简体 | 繁體 |

DIN EN ISO 8746 - 1998

Unit: mm

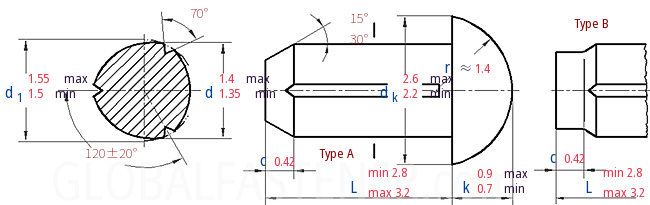

DIN EN ISO 8746 - 1998 Grooved Pins With Round Head

Unit: mm

Find suppliers

Download

DIN EN ISO 8746A_Φ1.4X3

Download this CAD model

DIN EN ISO 8746B_Φ1.4X3

Download this CAD model

DIN EN ISO 8746 - 1998 Grooved Pins With Round Head

Nominal Diameter
d

Φ1.4

d	max
	min
d_k	max
	min
k	max
	min
r	≈
c
d₁	max
	min

1.4
1.35
2.6
2.2
0.9
0.7
1.4
0.42
1.55
1.5
