GB /T 6187.1 - 2016Prevailing Torque Type All-Metal Hexagon Nuts with Flange, Style 2

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

GB /T 6187.1 - 2016

Unit: mm

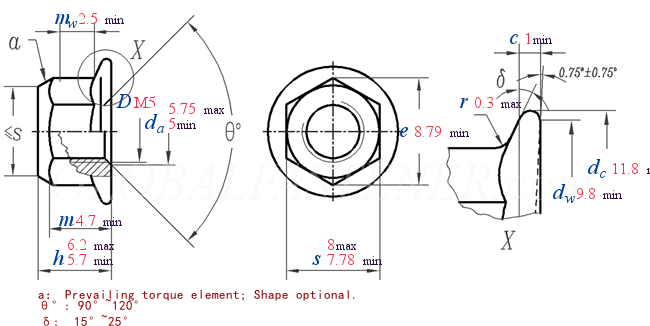

GB /T 6187.1 - 2016 Prevailing Torque Type All-Metal Hexagon Nuts With Flange,Style 2

Unit: mm

Find suppliers

Download

GBT6187.1@simple_M5

Download this CAD model

GBT6187.1_M5

Download this CAD model

GB /T 6187.1 - 2016 Prevailing Torque Type All-Metal Hexagon Nuts With Flange,Style 2

Thread Size
D

M5

P	Pitch
c	min
d_a	max
d_a	min
d_c	max
d_w	min
e	min
h	max
h	min
m	min
m_w	min
s	max
s	min
r	max
per 1000 units ≈ kg

0.8
1
5.75
5
11.8
9.8
8.79
6.2
5.7
4.7
2.5
8
7.78
0.3
1.55
