GB /T 6183.1 - 2016Prevailing Torque Type Hexagon Nuts With Flange（With Non-Metallic Insert）,style 2

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

GB /T 6183.1 - 2016

Unit: mm

GB /T 6183.1 - 2016 Prevailing Torque Type Hexagon Nuts With Flange（With Non-Metallic Insert）,style 2

Unit: mm

Find suppliers

Download

GBT 6183.1_M5

Download this CAD model

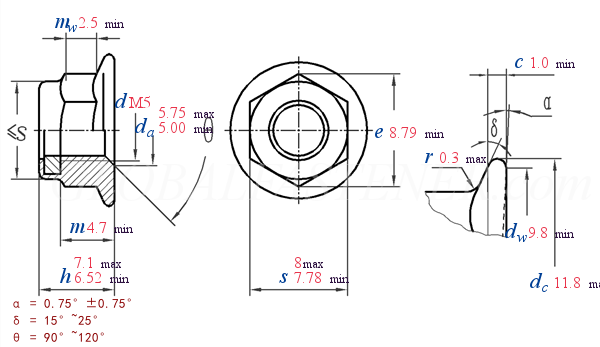

GB /T 6183.1 - 2016 Prevailing Torque Type Hexagon Nuts With Flange（With Non-Metallic Insert）,style 2

Thread Size
D

M5

P	Pitch
c	min
d_a	max
d_a	min
d_c	max
d_w	min
e	min
h	max
h	min
m	min
m_w	min
s	max
s	min
r	max
per 1000 units ≈ kg

0.8
1.0
5.75
5.00
11.8
9.8
8.79
7.1
6.52
4.7
2.5
8
7.78
0.3
1.66
