GB /T 15 - 2013Mushroom Head Nib Bolts

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

GB /T 15 - 2013

Unit: mm

GB /T 15 - 2013 Mushroom Head Nib Bolts

Unit: mm

Find suppliers

Download

GBT15@simple_M6X20

Download this CAD model

GBT15_M6X20

Download this CAD model

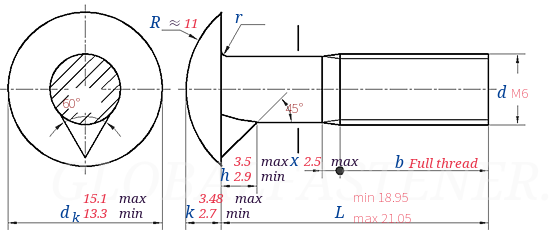

GB /T 15 - 2013 Mushroom Head Nib Bolts

Thread Size
d

M6

P	Pitch
b	L≤125
b	125＜L≤200
d_k	max
d_k	min
h	max
h	min
k	max
k	min
x	max
R	≈

1
18
/
15.1
13.3
3.5
2.9
3.48
2.7
2.5
11

thousand-piece steel weight≈kg

5.25

Thread Lengthb

Full thread
