DIN 982 - 1987Prevailing Torque Type Hexagon Thick Nuts with Non-Metallic Insert

简体 | 繁體 | FastenerExpo |

DIN 982 - 1987

Unit: mm

DIN 982 - 1987 Prevailing Torque Type Hexagon Thick Nuts with Non-Metallic Insert

Unit: mm

Find suppliers

Download

DIN 982-P0.8_M5

Download this CAD model

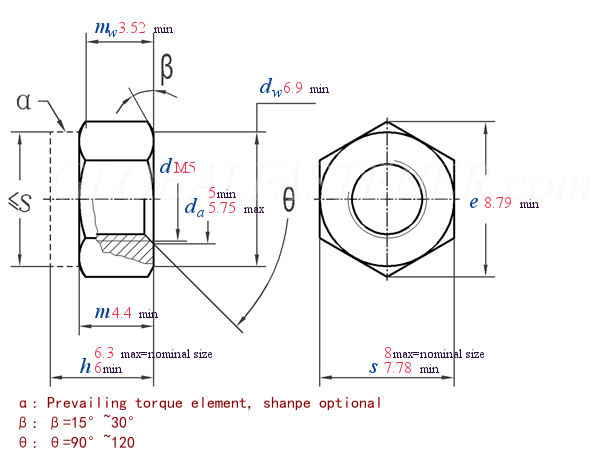

DIN 982 - 1987 Prevailing Torque Type Hexagon Thick Nuts with Non-Metallic Insert

Thread Specifications
d

M5

P		Pitch	Coarse thread
			Fine thread 1
			Fine thread 2
d_a		min
		max
d_w		min
e		min
h		max=nominal size
		min
m		min
m_w		min
s		max=nominal size
		min
per 1000 units ≈ kg

0.8
/
/
5
5.75
6.9
8.79
6.3
6
4.4
3.52
8
7.78
1.4
