ISO 7380-2 - 2011

Unit: mm

ISO 7380-2 - 2011 Hexagon Socket Button Head Screws With Collar

Unit: mm

Find suppliers

Download

ISO7380-2@simple_M3X6

Download this CAD model

ISO7380-2_M3X6

Download this CAD model

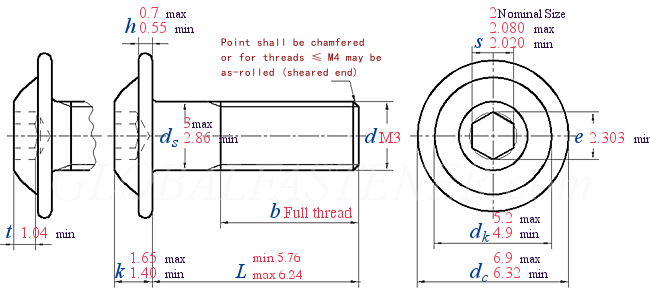

ISO 7380-2 - 2011 Hexagon Socket Button Head Screws With Collar

Thread Size
d

M3

P	Pitch
h	max
h	min
d_c	max
d_c	min
d_k	max
d_k	min
d_s	max
d_s	min
e ^①	min
k	max
k	min
s ^①	Nominal Size
	max
	min
t	min
Minimum tensile load(N) ^②	8.8
Minimum tensile load(N) ^②	10.9

0.5
0.7
0.55
6.9
6.32
5.2
4.9
3
2.86
2.303
1.65
1.40
2
2.080
2.020
1.04
3220
4180

Thread Lengthb

Full thread
