ISO 4766 - 2011Slotted Set Screws with Flat Point

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

ISO 4766 - 2011

Unit: mm

ISO 4766 - 2011 Slotted Set Screws With Flat Point

Unit: mm

Find suppliers

Download

ISO 4766_M1.2X2

Download this CAD model

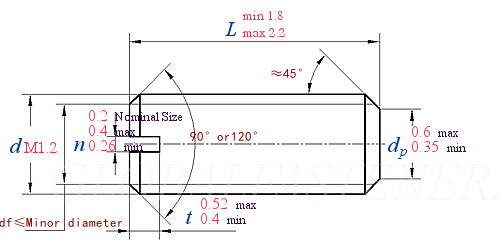

ISO 4766 - 2011 Slotted Set Screws With Flat Point

Thread Specifications
d

M1.2

P	Pitch
d_p	max
d_p	min
n	Nominal Size
	max
	min
t	max
t	min
L₀ ^①	Nominal Size

0.25
0.6
0.35
0.2
0.4
0.26
0.52
0.4
/
