  • M2
  • M2.5
  • M3
  • (M3.5)
  • M4
  • M5
  • M6
  • M8
  • M10

18

  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
  • 12
  • (14)
  • 16
  • 20
ISO 14581 - 2013

Unit: mm

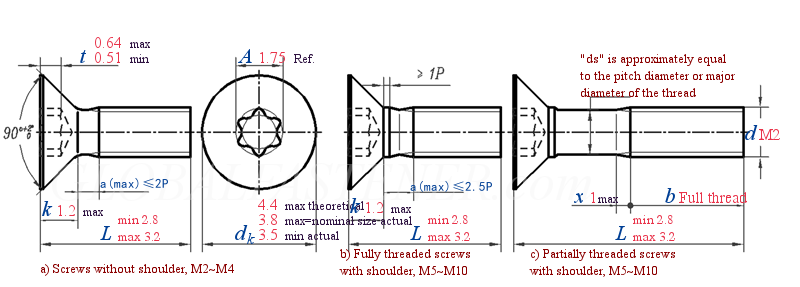

ISO 14581 - 2013 Fasteners — Hexalobular Socket Countersunk Flat Head Screws

Unit: mm

Find suppliers
ISO 14581_M2X3
Download this CAD model
ISO 14581 - 2013 Fasteners — Hexalobular Socket Countersunk Flat Head Screws
Thread Specifications
d 		M2
P Pitch
dk theoretical max
actual max=nominal size
min
k max
x max
Socket No.
A Ref.
t max
min
0.4
4.4
3.8
3.5
1.2
1
T6
1.75
0.64
0.51
thousand-piece steel weight≈kg
0.101
Thread Lengthb
Full thread
