DIN 7505 - 1986Particle Board Screws with Cross Recess Type Z, Raised Countersunk Head

| 简体 | 繁體 |

DIN 7505 - 1986

Unit: mm

DIN 7505 - 1986 Particle Board Screws With Cross Recess Type Z, Raised Countersunk Head

Unit: mm

Find suppliers

Download

DIN 7505_3X10

Download this CAD model

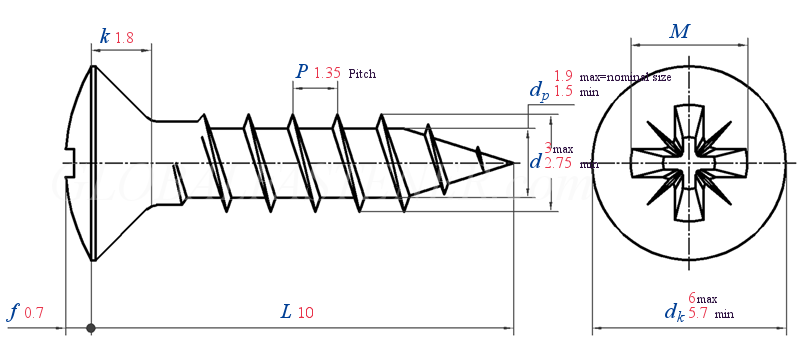

DIN 7505 - 1986 Particle Board Screws With Cross Recess Type Z, Raised Countersunk Head

Thread Size

3

d	max
	min
P	Pitch
d_k	max
	min
k
f
d_p	max=nominal size
	min
Socket No.

3
2.75
1.35
6
5.7
1.8
0.7
1.9
1.5
1
