DIN 1477 - 1978 Countersunk Head Grooved Pins

Unit: mm

Find suppliers

Download

DIN 1477_Φ1.4X3

Download this CAD model

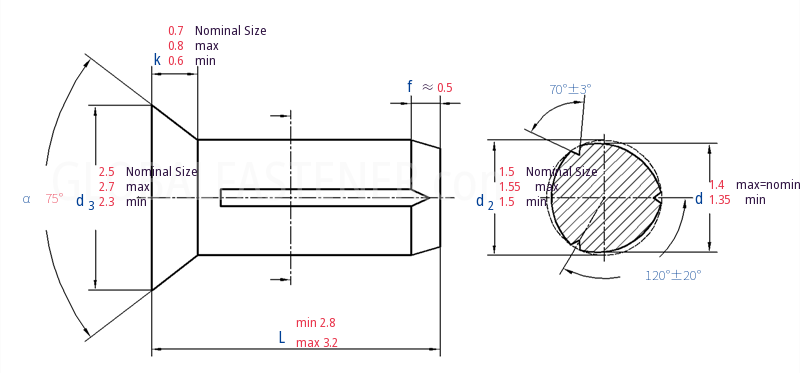

DIN 1477 - 1978 Countersunk Head Grooved Pins

Nominal Diameter
d

Φ1.4

d	max=nominal size
d	min
α
d₃	Nominal Size
	max
	min
d₂	Nominal Size
	max
	min
k	Nominal Size
	max
	min
f	≈

1.4
1.35
75°
2.5
2.7
2.3
1.5
1.55
1.5
0.7
0.8
0.6
0.5

thousand-piece steel weight≈kg

0.045
