ASTM F 436M - 2019

Unit: mm

ASTM F 436M - 2019 Metric Hardened Steel Washers

Unit: mm

Find suppliers
ASTM F436M-削_M12
Download this CAD model
ASTM F436M-圆_M12
Download this CAD model

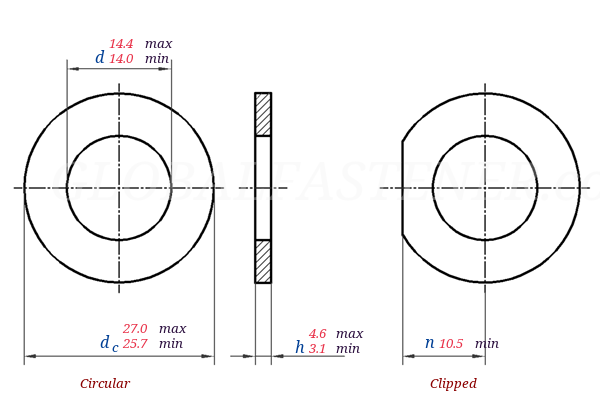

ASTM F 436M - 2019 Metric Hardened Steel Washers
For thread diameter M12
d max
min
dc max
min
h max
min
n min
14.4
14.0
27.0
25.7
4.6
3.1
10.5
