DIN 7964 (F) - 1990Reduced Shanke Bolts and Screws with Coarse Thread - Knurled Thumb Screws, High Type

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

8
10
12
(14)

DIN 7964 (F) - 1990

Unit: mm

DIN 7964 F - 1990 Reduced shanke bolts and screws with coarse thread - Knurled Thumb Screws, High Type

Unit: mm

Find suppliers

Download

DIN7964@simpleKF-K_M2.5X8

Download this CAD model

DIN7964@simpleKF-SP_M2.5X8

Download this CAD model

DIN7964KF-K_M2.5X8

Download this CAD model

DIN7964KF-SP_M2.5X8

Download this CAD model

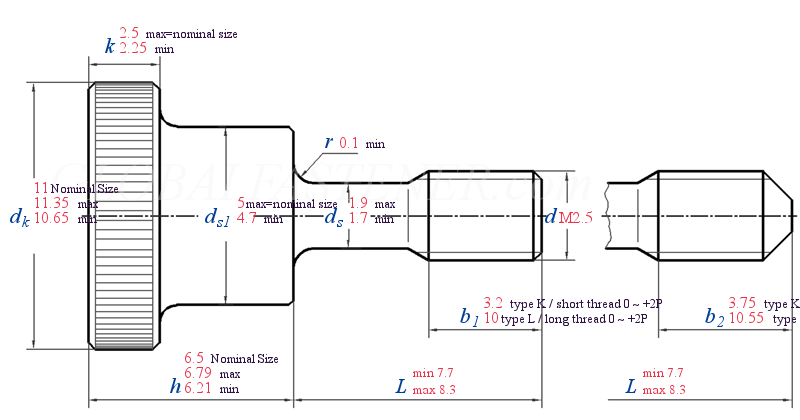

DIN 7964 F - 1990 Reduced shanke bolts and screws with coarse thread - Knurled Thumb Screws, High Type

Thread Size
d

M2.5

P
b₁		0 ~ +2P	type K / short thread
			type L / long thread
b₂		0 ~ +2P	type K / short thread
			type L / long thread
d_s		max
		min
r		min
d_k		Nominal Size
		max
		min
d_s1		max=nominal size
		min
h		Nominal Size
		max
		min
k		max=nominal size
		min

0.45
3.2
10
3.75
10.55
1.9
1.7
0.1
11
11.35
10.65
5
4.7
6.5
6.79
6.21
2.5
2.25
