DIN 7964 (D2) - 1990Reduced Shanke Bolts and Screws with Coarse Thread - Hexagon Head (DIN 931)

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

8
10
12
(14)

DIN 7964 (D2) - 1990

Unit: mm

DIN 7964 D2 - 1990 Reduced shanke bolts and screws with coarse thread - Hexagon head (DIN 931)

Unit: mm

Find suppliers

Download

DIN7964@simpleKD2-K_M2.5X8

Download this CAD model

DIN7964@simpleKD2-SP_M2.5X8

Download this CAD model

DIN7964KD2-K_M2.5X8

Download this CAD model

DIN7964KD2-SP_M2.5X8

Download this CAD model

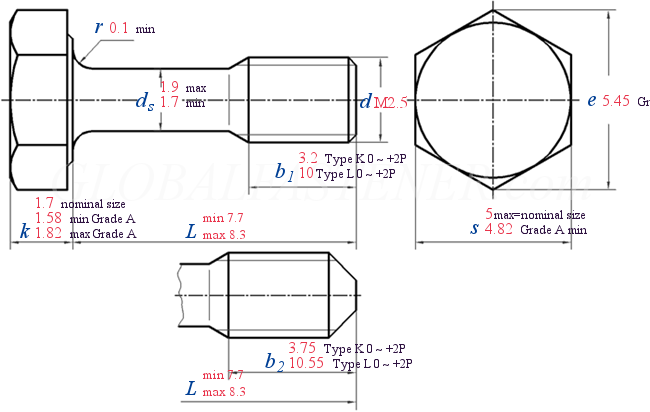

DIN 7964 D2 - 1990 Reduced shanke bolts and screws with coarse thread - Hexagon head (DIN 931)

Thread Size
d

M2.5

P		Thread Pitch
b₁		0 ~ +2P	Type K
			Type L
b₂		0 ~ +2P	Type K
			Type L
d_s		max
		min
r		min
k		nominal size
		Grade A	min
			max
		Grade B	min
			max
s		max=nominal size
		min	Grade A
			Grade B
e		min	Grade A
			Grade B

0.45
3.2
10
3.75
10.55
1.9
1.7
0.1
1.7
1.58
1.82
/
/
5
4.82
/
5.45
/
