DIN 7964 (B) - 1990Reduced shanke bolts and screws with coarse thread - Slotted pan head

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

10
12
(14)
16

DIN 7964 (B) - 1990

Unit: mm

DIN 7964 B - 1990 Reduced shanke bolts and screws with coarse thread - Slotted pan head

Unit: mm

Find suppliers

Download

DIN7964@simpleKB-K_M3X10

Download this CAD model

DIN7964@simpleKB-SP_M3X10

Download this CAD model

DIN7964KB-K_M3X10

Download this CAD model

DIN7964KB-SP_M3X10

Download this CAD model

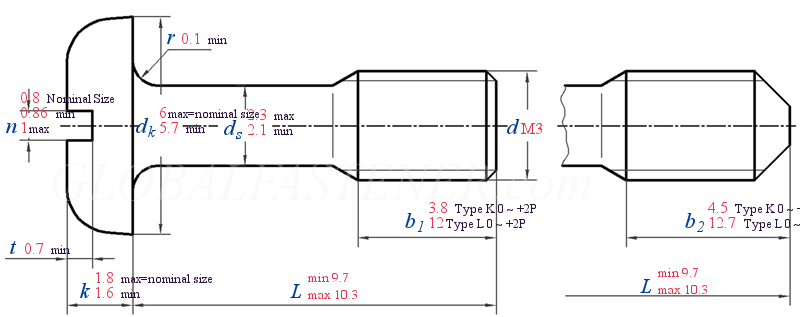

DIN 7964 B - 1990 Reduced shanke bolts and screws with coarse thread - Slotted pan head

Thread Size
d

M3

P		Thread Pitch
b₁		0 ~ +2P	Type K
			Type L
b₂		0 ~ +2P	Type K
			Type L
r		min
d_s		max
		min
d_k		max=nominal size
		min
k		max=nominal size
		min
n		Nominal Size
		min
		max
t		min

0.5
3.8
12
4.5
12.7
0.1
2.3
2.1
6
5.7
1.8
1.6
0.8
0.86
1
0.7
