GB /T 9125.2 - 2020

Unit: mm

GB /T 9125.2 - 2020 Hexagon Nuts For Pipe Flange Connection,Type 2

Unit: mm

Find suppliers
GBT9125.2[2]_M14
Download this CAD model

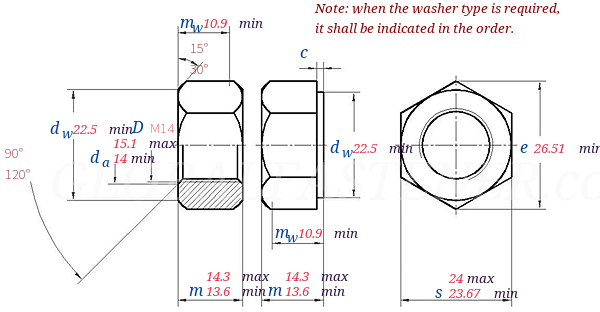

GB /T 9125.2 - 2020 Hexagon Nuts For Pipe Flange Connection,Type 2
Thread Size
d 		M14
P Pitch
da max
min
dw min
e min
m max
min
mw min
s max
min
per 1000 units≈kg
2
15.1
14
22.5
26.51
14.3
13.6
10.9
24
23.67
32.09
