GB /T 9125.1 - 2020Hexagon Nuts For Pipe Flange Connection,Type 1

简体 | 繁體 | FastenerExpo |

GB /T 9125.1 - 2020

Unit: mm

GB /T 9125.1 - 2020 Hexagon Nuts For Pipe Flange Connection,Type 1

Unit: mm

Find suppliers

Download

GBT9125.1_M10

Download this CAD model

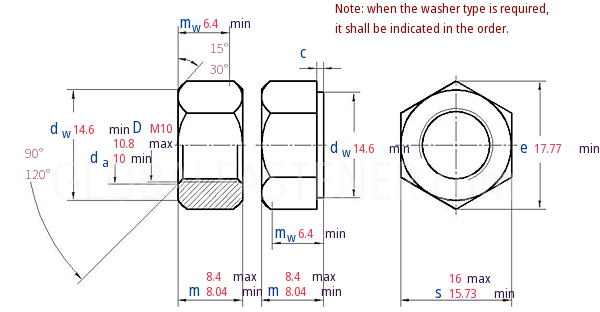

GB /T 9125.1 - 2020 Hexagon Nuts For Pipe Flange Connection,Type 1

Thread Size
d

M10

P	Pitch
d_a	max
d_a	min
d_w	min
e	min
m	max
m	min
m_w	min
s	max
s	min
per 1000 units≈kg

1.5
10.8
10
14.6
17.77
8.4
8.04
6.4
16
15.73
7.94
