DIN 906 - 2020

Unit: mm

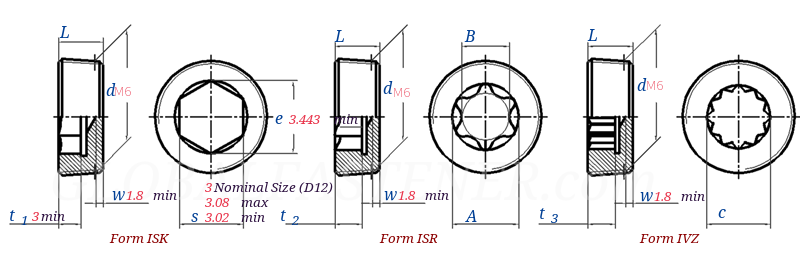

DIN 906 - 2020 Internal Drive Pipe Plugs - Conical Thread

Unit: mm

Find suppliers
DIN906 P1-ISK_M6
Download this CAD model
DIN 906 - 2020 Internal Drive Pipe Plugs - Conical Thread
Thread Size
d 		M6
P Pitch
Pitch
d Pipe thread/R
L Nominal Size (js16)
max
min
e min
s Nominal Size (D12)
max
min
t1 min
Socket No. according to DIN EN ISO 10664
A according to DIN EN ISO 10664
B according to DIN EN ISO 10664
t2 min
Socket No. according to DIN 34824
c according to DIN 34824 min
max
t3 min
w min
per 1000 units≈kg
1
-
-
6
6.375
5.625
3.443
3
3.08
3.02
3
-
-
-
-
-
-
-
-
1.8
0.85
