ISO 10642 - 2019Hexagon Socket Countersunk Head Screws With Reduced Loadability

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

Note: No model available for the selected specifications, borrowing for presentation.ISO10642_M4X8

ISO 10642 - 2019

Unit: mm

ISO 10642 - 2019 Hexagon Socket Countersunk Head Screws With Reduced Loadability

Unit: mm

Find suppliers

Download

ISO10642_M4X8

Download this CAD model

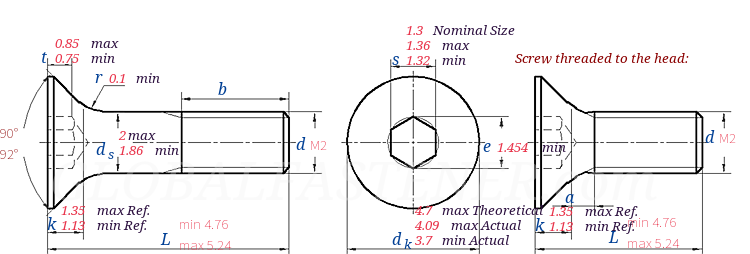

ISO 10642 - 2019 Hexagon Socket Countersunk Head Screws With Reduced Loadability

Thread Size
d

M2

P		Pitch
d_k		Theoretical	max
		Actual	max
			min
d_s		max
		min
e ^①		min
k		Ref.	max
			min
s		Nominal Size
		max
		min
t		max
		min
Minimum tensile load(N)-8.8 ^②
Minimum tensile load(N)-10.9 ^②
Minimum tensile load(N)-12.9 ^②
Minimum tensile load(N)-50 ^③
Minimum tensile load(N)-70 ^③
Minimum tensile load(N)-80 ^③

0.4
4.7
4.09
3.7
2
1.86
1.454
1.35
1.13
1.3
1.36
1.32
0.85
0.75
1330
1730
2020
830
1160
1330

Thread Lengthb

Full thread
