ASME B 18.2.6 - 2019

Unit: inch

ASME B 18.2.6 - 2019 Hardened Steel Circular and Circular Clipped Washers (ASTM F436 / F436M)

Unit: inch

Find suppliers

Download

B18.2.6-F436-C_1/2

Download this CAD model

B18.2.6-F436-N_1/2

Download this CAD model

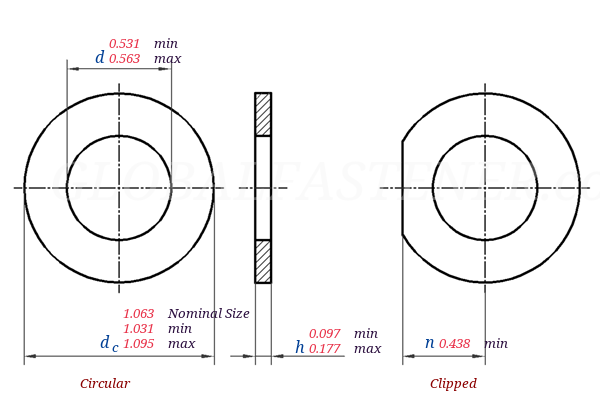

ASME B 18.2.6 - 2019 Hardened Steel Circular and Circular Clipped Washers (ASTM F436 / F436M)

Size

1/2

d	min
d	max
d_c	Nominal Size
	min
	max
h	min
h	max
n	min

0.531
0.563
1.063
1.031
1.095
0.097
0.177
0.438
