DIN 6796 - 2009

Unit: mm

DIN 6796 - 2009 Conical Spring Washers for Bolted Connections

Unit: mm

Find suppliers

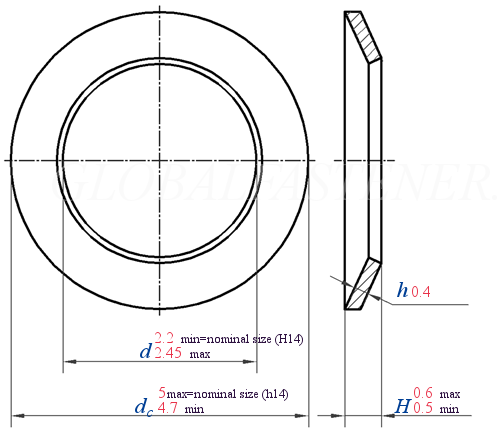

DIN 6796 - 2009 Conical Spring Washers for Bolted Connections
For thread diameter M2
d min=nominal size (H14)
max
dc max=nominal size (h14)
min
h ①
H max
min
per 1000 units ≈ kg
2.2
2.45
5
4.7
0.4
0.6
0.5
0.05
