DIN 965 - 1990Cross Recessed Countersunk Head Screws

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

DIN 965 - 1990

Unit: mm

DIN 965 - 1990 Cross Recessed Countersunk Head Screws

Unit: mm

Find suppliers

Download

DIN965@simple-P0.35_M1.6X3

Download this CAD model

DIN965-P0.35_M1.6X3

Download this CAD model

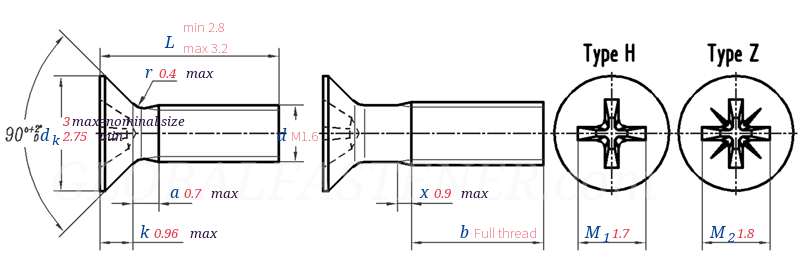

DIN 965 - 1990 Cross Recessed Countersunk Head Screws

Thread Size
d

M1.6

P	Pitch
a	max
d_k	max=nominal size
d_k	min
k	max
r	max
x	max
Socket No.
M₁
M₂

0.35
0.7
3
2.75
0.96
0.4
0.9
0
1.7
1.8

thousand-piece steel weight≈kg

0.058

Thread Lengthb

Full thread
