Type 2, Styles A and B Shoulder Pattern Eyebolt [Table 2] (A489, F541, A473)

ASME/ANSI B 18.15 - 1985 (R1995)

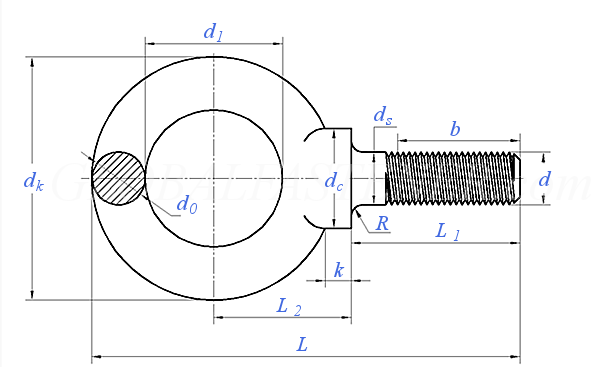

Display drawing:

Nominal Diameter
d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

d_s
L₁	Type A
	Type B
d₁
d_k
d₀
L
b	Type A
	Type B
L₂
d_c
k
R

0.25	0.28	0.31	0.34	0.38	0.41	0.44	0.47	0.5	0.53	0.56	0.59	0.62	0.66	0.75
1	1.06	1.12	1.19	1.25	1.38	1.38	1.5	1.5	1.62	1.62	1.75	1.75	1.88	2
1	1.06	1.06	1.13	1.12	1.25	1.13	1.25	1.13	1.25	1.21	1.34	1.31	1.44	1.5
0.69	0.81	0.81	0.94	0.94	1.06	1	1.12	1.12	1.25	1.19	1.31	1.31	1.44	1.44
1.19	1.19	1.44	1.44	1.69	1.69	1.81	1.81	2.12	2.12	2.25	2.25	2.56	2.56	2.81
0.19	0.25	0.25	0.31	0.31	0.38	0.34	0.41	0.44	0.5	0.47	0.53	0.56	0.62	0.62
2.22	2.53	2.66	2.97	3.09	3.47	3.41	3.78	3.81	4.19	4.19	4.56	4.56	4.94	5.06
0.75	0.75	0.81	0.81	0.88	0.88	1	1	1.12	1.12	1.25	1.25	1.38	1.38	1.62
0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.84	0.84	0.94	0.94	1.12
0.69	0.81	0.88	1.00	1.06	1.19	1.19	1.31	1.31	1.44	1.50	1.62	1.59	1.72	1.72
0.50	0.56	0.56	0.62	0.62	0.69	0.75	0.81	0.88	0.94	0.94	1.00	1.00	1.06	1.12
0.12	0.19	0.12	0.19	0.12	0.19	0.19	0.25	0.19	0.25	0.22	0.28	0.25	0.31	0.25
0.015	0.025	0.015	0.025	0.015	0.025	0.015	0.025	0.015	0.025	0.020	0.045	0.020	0.045	0.020

Nominal Diameter
d

3/4

7/8

1-1/8

1-1/4

1-1/2

1-3/4

d_s
L₁	Type A
	Type B
d₁
d_k
d₀
L
b	Type A
	Type B
L₂
d_c
k
R

0.78	0.88	0.91	1	1.06	1.12	1.19	1.25	1.34	1.5	1.59	1.75	1.84	2	2.09
2.12	2.25	2.38	2.5	2.62	2.75	2.88	3	3.12	3.5	3.62	3.75	3.88	4	4.12
1.62	1.75	1.88	1.94	2.06	2.13	2.26	2.38	2.5	2.75	2.87	3.18	3.31	3.62	3.79
1.56	1.56	1.69	1.69	1.81	1.94	2.06	2.12	2.25	2.44	2.56	2.75	3	3.06	3.44
2.81	3.19	3.19	3.56	3.56	4.06	4.06	4.44	4.44	5.19	5.19	6	6	6.88	6.88
0.69	0.75	0.81	0.88	0.94	1	1.06	1.09	1.16	1.31	1.38	1.5	1.62	1.75	1.88
5.5	5.75	6.19	6.44	6.88	7.31	7.75	8	8.44	9.22	9.72	10.5	11.12	11.53	12.22
1.62	1.81	1.81	2.08	2.08	2.31	2.31	2.5	2.5	3	3	3.19	3.19	3.38	3.38
1.12	1.31	1.31	1.5	1.5	1.69	1.69	1.88	1.88	2.25	2.25	2.62	2.62	3	3
1.91	2.03	2.20	2.22	2.41	2.59	2.78	2.84	3.03	3.19	3.44	3.88	4.12	4.25	4.50
1.25	1.31	1.44	1.50	1.62	1.69	1.81	1.88	2.00	2.12	2.25	2.50	2.62	2.88	3.00
0.31	0.31	0.38	0.38	0.44	0.44	0.5	0.5	0.56	0.5	0.62	0.5	0.62	0.62	0.75
0.045	0.040	0.065	0.060	0.095	0.060	0.095	0.060	0.095	0.060	0.095	0.060	0.095	0.060	0.095
