Aerospace Series-Screws 100° Countersunk Normal Head, Offset Cruciform Recess, Coarse Tolerance Normal Shank, Medium Length Thread, In Alloy Steel, Cadmium Plated - 1100 MPa (At Ambient Temperature)/235 °C

EN 4162 - 2009

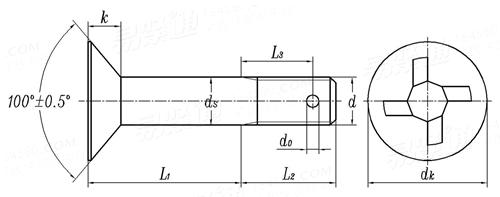

Display drawing:

欧标EN 4162 - 2009 EN4162 4162EN Aerospace Series-Screws 100° Countersunk Normal Head, Offset Cruciform Recess, Coarse Tolerance Normal Shank, Medium Length Thread, In Alloy Steel, Cadmium Plated - 1100 MPa (At Ambient Temperature)/235 °C
Thread Size
d
MJ3 MJ4 MJ5 MJ6 MJ7 MJ8 MJ10 MJ12 MJ14 MJ16 MJ18 MJ20
Thread Tolerance
P Pitch
ds max
min
dk max
min
d0 max
min
k
L2
L3
L1 tol.±0.2
4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h
0.5 0.7 0.8 1 1 1 1.25 1.25 1.5 1.5 1.5 1.5
3 4 5 6 7 8 10 12 14 16 18 20
2.9 3.88 4.88 5.88 6.85 7.85 9.85 11.82 13.82 15.82 17.82 19.79
6 8 10 12 14 16 20 24 28 32 36 40
5.4 7.2 9 10.8 12.8 14.8 18.8 22.8 26.8 30.8 34.8 38.8
- 1.1 1.5 1.5 1.9 1.9 2.4 2.4 3 3 3.8 3.8
- 0.96 1.36 1.36 1.76 1.76 2.26 2.26 2.86 2.86 3.62 3.62
1.27 1.69 2.12 2.54 2.96 3.39 4.23 5.08 5.93 6.77 7.62 8.47
7.5 10 12 14 15 16.5 20.5 22.5 26 28.5 31 33.5
- 6 7.5 8.5 9.5 10.5 13 14.5 17 18.5 21 22.5
3 to 30 3 to 40 4 to 50 5 to 60 6 to 70 6 to 80 8 to 100 10 to 120 10 to 140 10 to 160 11 to 180 12 to 200
