Click Specification

Unit:mm

Cheese Head Screws with Wire Holes on Head

HB 1- 203 - 2002

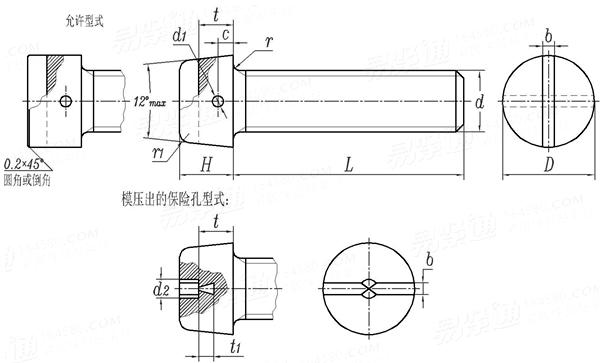

Display drawing:

航空HB 1-203 - 2002 HB203 203HB Cheese Head Screws with Wire Holes on Head
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Thread Size
d
M2 M2.5 M3 M4 M5 M6 M8 M10
H max=nominal size
min
D max=nominal size
min
r ① Nominal Size
max
min
r1 Ref.
b min=nominal size
max
t max=nominal size
min
t1 max=nominal size
min
d1
d2
c min=nominal size
max
保险丝直径
2.3 2.7 3 3.5 4.5 5.5 7 9
2.05 2.45 2.75 3.2 4.2 5.2 6.64 8.64
3.5 4.2 5 6 7.5 9 12 15
3.2 3.9 4.7 5.7 7.14 8.64 11.57 14.57
0.3 0.3 0.3 0.5 0.5 0.5 0.8 0.8
0.5 0.5 0.5 0.7 0.7 0.7 1 1
0.1 0.1 0.1 0.3 0.3 0.3 0.6 0.6
0.3 0.45 0.5 0.6 0.7 0.9 1.2 1.5
0.5 0.6 0.8 1 1.2 1.5 1.5 2
0.6 0.7 0.9 1.1 1.3 1.6 1.6 2.1
1.6 1.8 2.1 2.5 3.2 4 4.5 6
1.35 1.55 1.85 2.25 2.9 3.7 4.2 5.7
/ / 0.7 0.8 1.3 1.8 2 2.8
/ / 0.45 0.55 1.05 1.55 1.75 2.55
0.8 0.8 0.8 1.2 1.5 1.5 1.5 1.5
1 1.4 1.5 1.8 2.2 2.5 2.5 3
0.8 0.9 1 1 1.4 1.6 2 2.5
1 1.1 1.2 1.2 1.6 1.8 2.2 2.7
0.6 0.6 0.6 0.8 0.8 0.8 1 1
Weight of per 1000 steel products(≈kg)
- - - - - - - -
