Click Specification

Segment Bolts [Previously YJT /T1097]

YJT 1006

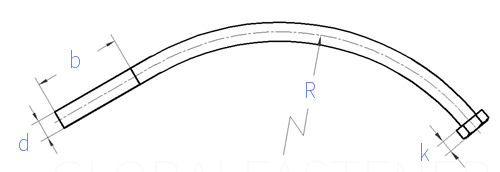

Display drawing:

Thread Size
d

M24
350/463

M24
280/470

M24
380/496

M24
380/470

M27
350/464

M27
350/473

M27
380/498

M30
360/545

M30
380/498

R
弧长
b
s	Hex head to side
k

350	280	380	380	350	350	380	360	380
463	469.7	495.7	470.2	464	473	497.6	545	497.5
50	39	39	39	45	45	42	42	42
36	36	36	36	41	41	41	46	46
15	15	15	15	17	17	17	18.5	18.5

Send Inquiry

YJT Code History Current code: YJT 1006; previous code: YJT /T1097. Shown for code traceability and purchasing reference.

Intellectual Property and Brand Notice: YJT codes are for classification, dimensional reference, purchasing selection and compatibility identification only. They do not imply product certification, patent license or third-party brand authorization. Reference brands/models are used only to identify comparable or compatible products. Trademarks and intellectual property rights belong to their owners; this page is not affiliated with or endorsed by the referenced brands. About the YJT Industrial Components Coding System
