Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Slotted Raised Countersunk Head Wood Screws

CNS 1053 - 1959

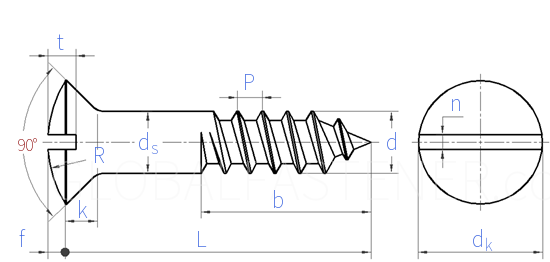

Display drawing:

台湾CNS 1053 - 1959 CNS1053 1053CNS Slotted Raised Countersunk Head Wood Screws
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Size
(1.4) 1.7 2 (2.4) 2.7 3 (3.5) 4 (4.5) 5 (5.5) 6 (7) 8
ds Nominal Size
min
max
dk
k ≈
f ≈
n min=nominal size
max
t Nominal Size
min
max
d
P
R ≈
1.4 1.7 2 2.4 2.7 3 3.5 4 4.5 5 5.5 6 7 8
1.36 1.66 1.93 2.33 2.63 2.93 3.4 3.9 4.4 4.88 5.38 5.88 6.85 7.85
1.44 1.74 2.07 2.47 2.77 3.07 3.6 4.1 4.6 5.12 5.62 6.12 7.15 8.15
2.8 3.4 4 4.8 5.4 6 7 8 9 10 11 12 14 16
0.7 0.85 1 1.2 1.35 1.5 1.75 2 2.25 2.5 2.75 3 3.5 4
0.4 0.6 0.7 0.8 0.8 1 1.2 1.4 1.6 1.8 1.9 2.1 2.5 2.8
0.4 0.5 0.5 0.6 0.6 0.8 0.8 1 1 1.2 1.2 1.6 2 2
0.55 0.65 0.65 0.75 0.75 0.95 0.95 1.2 1.2 1.4 1.4 1.8 2.2 2.2
0.5 0.6 0.7 0.8 0.9 1 1.2 1.4 1.6 1.7 1.9 2.1 2.4 2.8
0.45 0.55 0.65 0.7 0.8 0.9 1.05 1.25 1.45 1.55 1.7 1.9 2.15 2.55
0.55 0.65 0.75 0.9 1 1.1 1.35 1.55 1.75 1.85 2.1 2.3 2.65 3.05
1 1.2 1.4 1.7 1.9 2.1 2.4 2.8 3.1 3.5 3.8 4.2 4.9 5.6
0.6 0.8 0.9 1 1.2 1.35 1.6 1.8 2 2.2 2.4 2.6 3.2 3.5
2.6 2.7 3.2 4 4.7 5 5.7 6.4 7.1 7.8 8.9 9.6 11.1 12.8
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - - - -
①,b≈0.5L.
②,Materials: Low carbon steel (C: 0.15%~0.25%), brass (CNS 368-H7), aluminum alloy (AlCu4Mg, AlMg5, AlMg7, AlMn), pure aluminum.
