Click Specification

Unit:mm

Hexagon Socket Set Screws With Flat Point

CNS 4482 - 1981

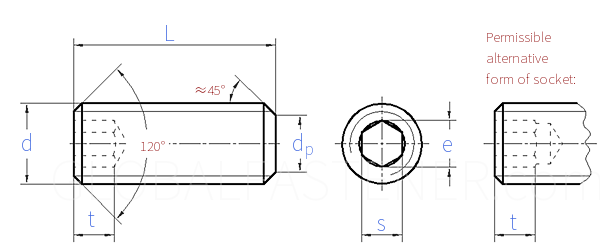

Display drawing:

台湾CNS 4482 - 1981 CNS4482 4482CNS Hexagon Socket Set Screws With Flat Point
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Thread Size
d
M1.4 M1.6 (M1.8) M2 M2.5 M3 M4 M5 M6
dp
e ≈
s Nominal Size
max
min
t min
0.7 0.7 0.9 1 1.5 2 2.5 3.5 4
0.8 0.8 0.8 1.05 1.5 1.8 2.3 2.9 3.5
0.7 0.7 0.7 0.9 1.3 1.5 2 2.5 3
0.724 0.724 0.724 0.913 1.3 1.545 2.045 2.56 3.06
0.71 0.71 0.71 0.888 1.275 1.52 2.02 2.52 3.02
1.4 1.5 1.6 1.6 2 2 2.5 3 3.5
Weight of per 1000 steel products(≈kg)
- - - - - - - - -
Thread Size
d
M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
dp
e ≈
s Nominal Size
max
min
t min
5.5 7 8.5 10 12 13 15 17 18
4.7 5.8 7 7 9.4 11.7 11.7 14 14
4 5 6 6 8 10 10 12 12
4.068 5.068 6.095 6.095 8.115 10.115 10.115 12.142 12.142
4.02 5.02 6.02 6.02 8.025 10.025 10.025 12.032 12.032
5 6 8 8 10 12 12 15 15
Weight of per 1000 steel products(≈kg)
- - - - - - - - -
