Lifting appliances - Clamping plates for fixing steel wire ropes, Type DY

GB /T 5975 (DY) - 2026

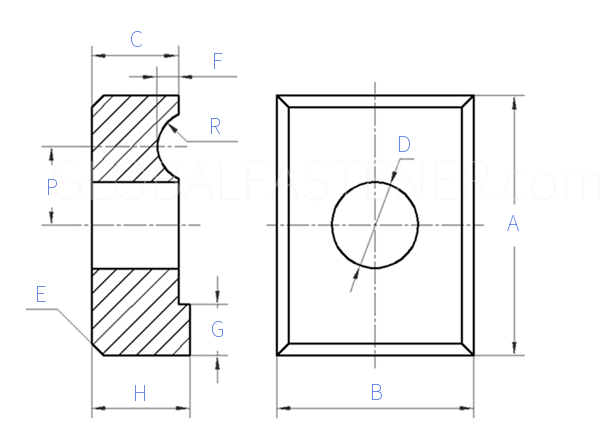

Display drawing:

国标GB /T5975 (DY) - 2026 GB5975 5975GB Lifting appliances - Clamping plates for fixing steel wire ropes, Type DY
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Model
DY08 DY10 DY12 DY14 DY16 DY18 DY20 DY22 DY24
Applicable Nominal Diameter of Wire Rope
P
A
B
C
D
E
F
G
H
R
Clamp Bolt Diameter
per unit≈kg
6~8 >8~10 >10~12 >12~14 >14~16 >16~18 >18~20 >20~22 >22~24
10 12 14 16 18 20 22 25 27
36 42 50 57 60 66 74 80 86
35 40 40 50 50 50 60 60 70
8 10 14 18 22 22 25 25 25
10 12 14 18 18 22 22 26 26
1 2 2 3 3 3 3 4 4
2 2 2 3 5 6 7 7.5 7.5
7 8 9 10 15 13 19 14 22
14 17 21 25 25 25 30 30 30
4.5 5.5 6.5 7.5 8.5 9.5 10.5 11.5 12.5
M8 M10 M12 M16 M16 M20 M20 M24 M24
0.09 0.15 0.24 0.42 0.52 0.57 0.88 0.94 1.19
Model
DY26 DY28 DY30 DY32 DY34 DY36 DY38 DY40
Applicable Nominal Diameter of Wire Rope
P
A
B
C
D
E
F
G
H
R
Clamp Bolt Diameter
per unit≈kg
>24-26 >26~28 >28~30 >30~32 >32~34 >34~36 >36~38 >38~40
29 32 34 36 38 40 42 44
88 98 106 110 116 120 130 138
70 70 90 90 90 110 110 110
25 28 28 35 35 35 40 40
26 32 32 32 32 38 38 38
4 5 5 5 5 6 6 6
8 8 8 9 9 10 10 10
22 17 27 28 29 21 33 35
30 35 35 42 45 45 50 50
13.5 14.5 15.5 16.5 17.5 19 20 21
M24 M30 M30 M30 M30 M36 M36 M36
1.21 1.53 2.14 2.66 2.8 3.53 4.59 4.89
