Click Specification

Unit:mm

Lifting appliances - Clamping plates for fixing steel wire ropes, Type TY

GB /T 5975 (TY) - 2026

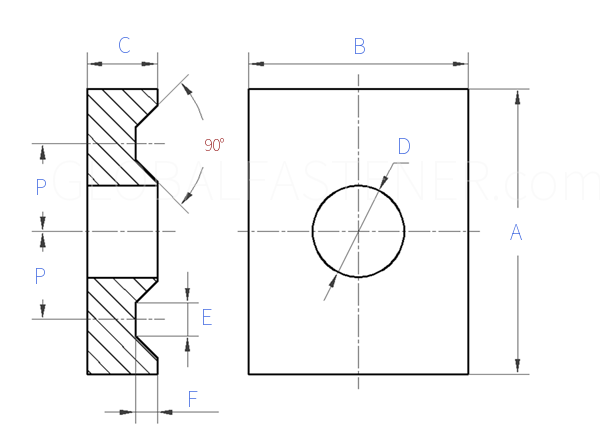

Display drawing:

国标GB /T5975 (TY) - 2026 GB5975 5975GB Lifting appliances - Clamping plates for fixing steel wire ropes, Type TY
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Model
TY08 TY10 TY12 TY14 TY16 TY18 TY20 TY22 TY24 TY26 TY28 TY30 TY32
Applicable Nominal Diameter of Wire Rope
P
E
A
B
C
F
D
Clamp Bolt Diameter
per unit≈kg
6~8 >8~10 >10~12 >12~14 >14~16 >16~18 >18~20 >20~22 >22~24 >24-26 >26~28 >28~30 >30~32
10 12 14 16 18 20 22 25 27 29 32 34 36
3 4 5 5.5 6,5 7.5 8 9 10 10.5 11.5 12.5 13
35 40 45 50 58 65 70 78 85 90 98 105 110
35 35 40 45 50 50 50 55 60 60 70 80 80
10 12 14 16 16 16 20 20 24 24 30 30 30
2 3 3.5 4 5 5 6 6.5 7 8 8.5 9 9.5
13 13 15 15 17 21 21 25 25 25 32 32 32
M12 M12 M14 M14 M16 M20 M20 M24 M24 M24 M30 M30 M30
0.1 0.1 0.2 0.3 0.3 0.4 0.5 0.6 0.9 0.9 1.4 1.8 1.9
Model
TY34 TY36 TY38 TY40 TY42 TY44 TY46 TY48 TY50 TY52 TY54 TY56
Applicable Nominal Diameter of Wire Rope
P
E
A
B
C
F
D
Clamp Bolt Diameter
per unit≈kg
>32~34 >34~36 >36~38 >38~40 >40~42 >42~44 >44~46 >46~48 >48~50 >50~52 >52~54 >54~56
38 40 42 44 47 50 52 54 56 58 60 64
14 15 15.5 16.5 17 18 19 20 21 21.5 22 23
118 125 130 138 145 152 158 165 170 178 185 195
90 90 100 100 110 110 110 110 120 120 130 130
35 35 35 40 40 40 45 45 45 45 50 50
10 10.5 11 12 13 14 15 16 17 17 18 19
38 38 38 45 45 45 45 45 52 52 52 52
M36 M36 M36 M42 M42 M42 M42 M42 M48 M48 M48 M48
2.5 2.8 3.1 3.8 4.5 4.6 5.6 5.9 6.3 6.7 8.5 9.1
