Click Specification

Unit:mm

Lifting appliances - Clamping plates for fixing steel wire ropes, Type HY，HYS

GB /T 5975 (HY/HYS) - 2026

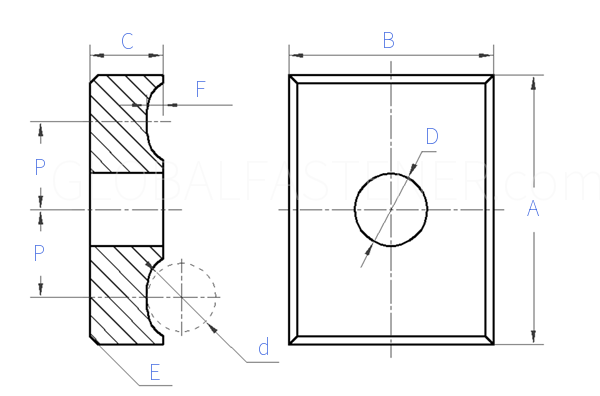

Display drawing:

国标GB /T5975 (HY/HYS) - 2026 GB5975 5975G Lifting appliances - Clamping plates for fixing steel wire ropes, Type HY，HYS
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Model ①
HY08 HY11 HY14 HY17 HY20 HY23 HY26 HY29 HY32
d Applicable Nominal Diameter of Wire Rope
A Standard Groove - HY
Deep Groove - HYS
B
C
D
E
F
P Standard Groove - HY
Deep Groove - HYS
Clamp Bolt Diameter
per unit≈kg Standard Groove - HY
Deep Groove - HYS
6~8 >8~11 >11~14 >14~17 >17~20 >20~23 >23~26 >26~29 >29~32
25 35 45 55 65 75 85 95 105
29 39 51 66 73 85 95 105 117
25 35 45 50 60 60 70 70 80
8 12 16 18 20 20 25 25 30
9 11 15 18 22 22 26 30 33
1 1 2 2 3 4 4 5 5
2 3 3.5 4 5 6 6.5 7 8
8 11.5 10.5 17.5 21 24.5 28 31.5 34.5
10 13.5 17.5 21.5 25 29.5 33 36.5 40.5
M8 M10 M14 M16 M20 M20 M24 M27 M30
0.03 0.1 0.22 0.32 0.48 0.55 0.91 0.99 1.52
0.04 0.12 0.25 0.37 0.55 0.65 1.05 1.12 1.75
Model ①
HY35 HY38 HY41 HY44 HY47 HY52 HY56 HY60
d Applicable Nominal Diameter of Wire Rope
A Standard Groove - HY
Deep Groove - HYS
B
C
D
E
F
P Standard Groove - HY
Deep Groove - HYS
Clamp Bolt Diameter
per unit≈kg Standard Groove - HY
Deep Groove - HYS
>32~35 >35~38 >38~41 >41~44 >44~47 >47~52 >52~56 >56~60
115 125 135 145 155 170 180 190
129 141 153 163 175 189 / /
90 90 100 110 110 125 135 145
35 35 40 40 50 50 50 55
33 39 45 45 45 52 52 52
6 6 8 8 8 10 10 10
9 10 11 12 13 13 14 15
38 40.5 41 47.5 51.5 56 60 64
45 48.5 53 56.5 61.5 65 / /
M30 M36 M42 M42 M42 M48 M48 M48
2.23 2.29 3.17 3.82 5.25 6.69 8.1 9.2
2.58 2.69 3.74 4.44 6.12 7.57 / /
①,The deep-groove arc-shaped clamp plate model is indicated by adding an ‘S’ to the standard arc-shaped clamp plate code. For example, the standard type is HY08, and the deep-groove type is HYS08.
