Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Grooved Pins-One-Third-Length Centre Grooved - Pin with Rounded Ends (RN)

ISO 8742 (RN) - 2026

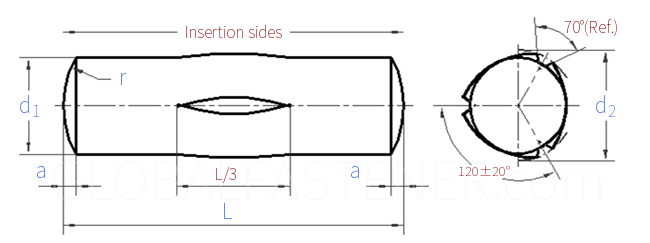

Display drawing:

国际ISO 8742 (RN) - 2026 ISO8742 8742ISO Grooved Pins-One-Third-Length Centre Grooved - Pin with Rounded Ends (RN)
Download CAD Model*

 *Models with different eras.

Nominal Length L Tips:seclect Nominal Length L and get .
Nominal Diameter
d
(1) 1.5 2 2.5 3 (3.5) 4 5 6 (7)
d1 max
min
a Nominal Size
max
min
d2 tol.
1 1.5 2 2.5 3 3.5 4 5 6 7
0.975 1.475 1.975 2.475 2.975 3.425 3.925 4.925 5.925 6.91
0.13 0.2 0.27 0.34 0.4 0.47 0.54 0.67 0.8 0.94
0.23 0.35 0.42 0.49 0.55 0.67 0.74 0.87 1 1.19
0.03 0.05 0.12 0.19 0.25 0.27 0.34 0.47 0.6 0.69
+0.05 +0.05 +0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05
d2，steel pins
- - - - - - - - - -
d2，stainless steel pins
- - - - - - - - - -
Nominal Diameter
d
8 (9) 10 12 (14) 16 (18) 20 25
d1 max
min
a Nominal Size
max
min
d2 tol.
8 9 10 12 14 16 18 20 25
7.91 8.91 9.91 11.89 13.89 15.89 17.89 19.87 24.87
1.07 1.21 1.34 1.61 1.88 2.14 2.41 2.68 3.35
1.32 1.46 1.64 1.91 2.23 2.49 2.86 3.13 3.9
0.82 0.96 1.04 1.31 1.53 1.79 1.96 2.23 2.8
±0.05 ±0.05 ±0.05 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
d2，steel pins
- - - - - - - - -
d2，stainless steel pins
- - - - - - - - -
①,r (参考) ≈ d1.

Alternative history

ISO 8742 - 1997 ISO 8742 - 2026
