Click Specification

Unit:mm

Rotary T-slot Nut

YJT 3043

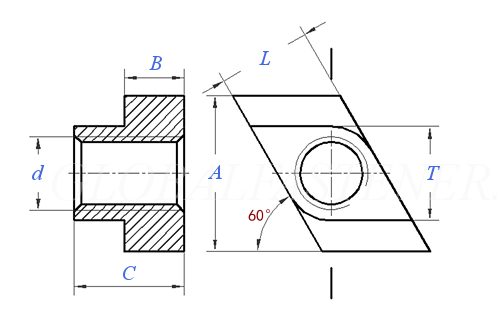

Display drawing:

标准YJT 3043 YJT3043 3043YJT Rotary T-slot Nut
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M10
-1210 		M12
-1412 		M14
-1614 		M16
-1816 		M18
-2018 		M20
-2220 		M20
-2420 		M24
-2824
T
A
B
C
L
per unit≈kg
11.7 13.8 15.8 17.8 19.7 21.7 23.5 26.9
17.5 22.2 25.4 28.5 31.7 36 38.2 41.3
5.5 8.7 8.7 11.1 11.9 13.8 14 17.5
12.7 15.8 15.8 19 19 25.4 25.4 28.5
11.5 13.5 15.5 17.5 19.5 21.5 23.5 27.5
0.01 0.023 0.03 0.03 0.044 0.062 0.092 0.162
