Click Specification

Unit:mm

Hexagon Nuts of Accuracy Class A

GOST 5927 - 1970

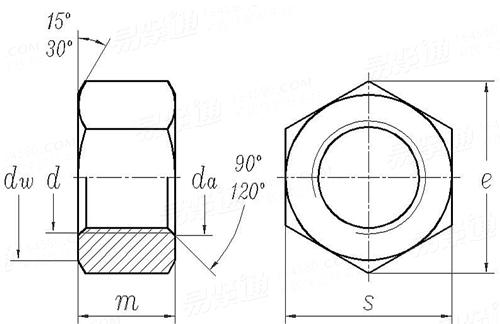

Display drawing:

俄标GOST 5927 - 1970 GOST5927 5927GOST Hexagon Nuts of Accuracy Class A
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M1 M1.4 M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
P pitch Coarse thread
Fine thread
s
e min
da min
max
dw min
m
per 1000 units≈kg Coarse thread
0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
/ / / / / / / / / / 1 1.25
3.2 3.2 3.2 4 5 5.5 6 7 8 10 13 16
3.4 3.4 3.4 4.3 5.5 6 6.6 7.7 8.8 11.1 14.4 17.8
1 1.4 1.6 2 2.5 3 3.5 4 5 6 8 10
1.15 1.61 1.84 2.3 2.9 3.45 4 4.6 5.75 6.75 8.75 10.8
2.9 2.9 2.9 3.6 4.5 5 5.4 6.3 7.2 9 11.7 14.6
1 1 1.3 1.6 2 2.4 2.8 3.2 4.7 5.2 6.8 8.4
0.062 0.057 0.074 0.141 0.272 0.377 0.497 0.8 1.44 2.573 5.548 10.22
Thread Size
d
M12 M14 M16 M18 M20 M22 M24 M27 M30 M36 M42 M48
P pitch Coarse thread
Fine thread
s
e min
da min
max
dw min
m
per 1000 units≈kg Coarse thread
1.75 2 2 2.5 2.5 2.5 3 3 3.5 4 4.5 5
1.25 1.5 1.5 1.5 1.5 1.5 2 2 2 3 3 3
18 21 24 27 30 34 36 41 46 55 65 75
20 23.4 26.8 30.1 33.5 37.7 40 45.6 51.3 61.3 72.6 83.9
12 14 16 18 20 22 24 27 30 36 42 48
13 15.1 17.3 19.4 21.6 23.8 25.9 29.2 32.4 38.9 45.4 51.8
16.6 19.6 22.5 25.3 28.2 31.7 33.6 38.4 43.1 51.5 61 70.5
10.8 12.8 14.8 16.4 18 19.8 21.5 23.6 25.6 31 34 38
15.67 25.33 37.61 53.27 71.44 103.15 122.87 175.28 242.54 416.78 623.88 956.2
①,For determination of mass of nuts made from other materials the mass values, specified in the table, shall be multiplied by the following factors: 0.356 - for aluminum alloy; 1.080 - for brass.
