Click Specification

Unit:mm

Nats for Rail Joints

GOST 11532 - 2014

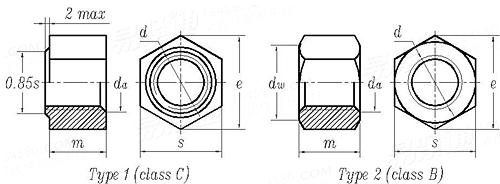

Display drawing:

俄标GOST 11532 - 2014 GOST11532 11532GOST Nats for Rail Joints
Thread Size
d
M22 M24 M27
P pitch
s
e ＜ 1
2
da min
max
dw
m Nominal Size
1 min
max
2 min
max
2.5 3 3
36 36 41
38.8 38.8 44.4
39.6 39.6 45.2
22 24 27
23.6 25.9 29.2
33.2 33.2 38
25 27 30
23.7 25.5 28
26.3 28.5 32
23.75 25.75 28.75
26.25 28.25 31.25
