Click Specification

Unit:mm

Pin Coupling with Elastic Sleeve - Elastic Sleeve, Retaining Ring and Pin

GB /T 4323 - 2002

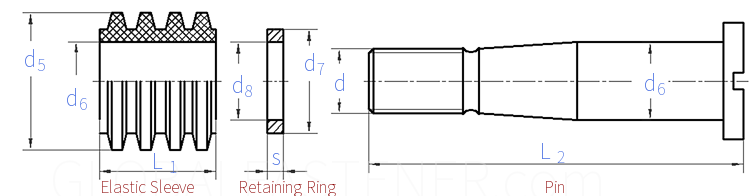

Display drawing:

国标GB /T4323 - 2002 GB4323 4323GB Pin Coupling with Elastic Sleeve - Elastic Sleeve, Retaining Ring and Pin
Thread Size
d
M6
LT1~2 		M6
LT3~4 		M12
LT/LTZ5~7 		M16
LT/LTZ8~9 		M20
LT/LTZ10 		M24
LT/LTZ11 		M30
LT/LTZ12 		M36
LT/LTZ13
d5
d6
L1
d7
s
d8
L2
16 19 26 35 45 56 71 85
8 10 14 18 24 30 38 45
10 15 28 36 44 56 72 88
12 15 20 25 32 40 50 60
3 4 5 6 8 10 12 14
8.2 10.4 14.5 18.6 24.8 30.8 39 46
40 55 72 88 110 140 170 210
