Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Reverse-taper Grooved Pins - One Quarter-length Progressive Grooves on Both Sides, Pin with Chamfered Ends

ISO 13670 (CH) - 2025

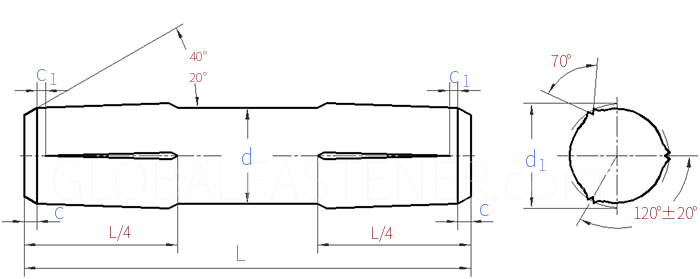

Display drawing:

国际ISO 13670 (CH) - 2025 ISO13670 13670IS Reverse-taper Grooved Pins - One Quarter-length Progressive Grooves on Both Sides, Pin with Chamfered Ends
Nominal Diameter
d
2 2.5 3 (3.5) 4 5 6 (7) 8
d max
min
c Nominal Size
max
min
d1 steel Nominal Size
max
min
stainless steel Nominal Size
max
min
c1 L≤10
10＜L≤26
26＜L≤50
50＜L≤100
100＜L≤200
2 2.5 3 3.5 4 5 6 7 8
1.975 2.475 2.975 3.425 3.925 4.925 5.925 6.91 7.91
0.35 0.4 0.5 0.55 0.65 0.8 1.2 1.4 1.6
0.55 0.6 0.7 0.8 0.9 1.05 1.45 1.7 1.9
0.15 0.2 0.3 0.3 0.4 0.55 0.95 1.1 1.3
2.15 2.7 3.2 3.7 4.25 5.25 6.25 7.25 8.25
2.2 2.75 3.25 3.75 4.3 5.3 6.3 7.3 8.3
2.15 2.65 3.15 3.65 4.2 5.2 6.2 7.2 8.2
2.1 2.65 3.15 3.675 4.175 5.175 6.175 7.2 8.2
2.15 2.7 3.2 3.725 4.225 5.225 6.225 7.25 8.25
2.1 2.6 3.1 3.625 4.125 5.125 6.125 7.15 8.15
0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
1 1 1 1 1 1 1 1 1
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3
Nominal Diameter
d
(9) 10 12 (14) 16 (18) 20 25
d max
min
c Nominal Size
max
min
d1 steel Nominal Size
max
min
stainless steel Nominal Size
max
min
c1 L≤10
10＜L≤26
26＜L≤50
50＜L≤100
100＜L≤200
9 10 12 14 16 18 20 25
8.91 9.91 11.89 13.89 15.89 17.89 19.87 24.87
1.8 2 2.5 2.7 3 3.2 3.5 4
2.1 2.35 2.85 3.1 3.4 3.7 4 4.6
1.5 1.65 2.15 2.3 2.6 2.7 3 3.4
9.25 10.25 12.35 14.35 16.35 18.35 20.4 25.4
9.3 10.3 12.45 14.45 16.45 18.45 20.5 25.5
9.2 10.2 12.25 14.25 16.25 18.25 20.3 25.3
9.2 10.2 12.275 14.275 16.275 18.275 20.3 25.3
9.25 10.25 12.375 14.375 16.375 18.375 20.4 25.4
9.15 10.15 12.175 14.175 16.175 18.175 20.2 25.2
0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
1 1 1 1 1 1 1 1
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3
