Steel Adjusting Rings for Shafts

NF E 22-161 - 1970

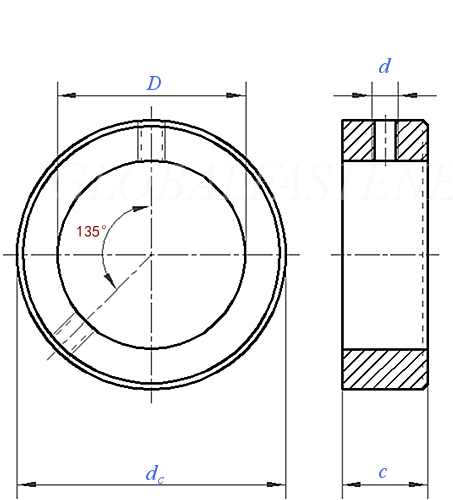

Display drawing:

法国NF E22-161 - 1970 NF22-161 22-161NF Steel Adjusting Rings for Shafts
Nominal Diameter
D
20 25 30 35 40 45 50 55
dc Narrow rings
c Narrow rings
N Narrow rings Number of holes
d Narrow rings
dc Wide rings
c Wide rings
N Wide rings Number of holes
d Wide rings
35 40 45 50 55 65 70 75
7 8 8 8 9 10 10 10
2 2 2 2 2 2 2 2
M4 M4 M5 M5 M5 M5 M6 M6
35 45 50 55 60 70 75 85
13 15 15 16 18 18 18 20
1 1 1 1 1 1 1 2
M6 M8 M8 M8 M10 M10 M10 M10
Nominal Diameter
D
60 65 70 80 90 100 120 150
dc Narrow rings
c Narrow rings
N Narrow rings Number of holes
d Narrow rings
dc Wide rings
c Wide rings
N Wide rings Number of holes
d Wide rings
80 85 90 100 115 130 150 190
11 12 13 14 15 17 18 20
2 2 2 2 2 2 2 2
M6 M6 M8 M8 M8 M8 M8 M8
90 95 100 115 130 145 165 205
20 20 20 23 23 26 30 30
2 2 2 2 2 2 2 2
M10 M10 M10 M10 M10 M10 M10 M10
