Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Round Head Bolts

NF E 27-313 - 1959

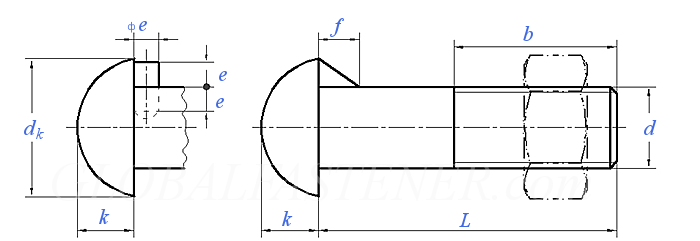

Display drawing:

法国NF E27-313 - 1959 NF27-313 27-313NF Round Head Bolts

Thread Size
d

4

5

6

(7)

8

10

12

14

16

18

20

22

P	pitch
d_k
k
f
e

0.7	0,8	1	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5
7	9	11	12	14	17	21	24	28	31	34	38
3	4	4.5	5	5.5	7	8	10	11	12	14	16
2	2.5	3	3.5	4	5	6	7	8	9	10	11
/	/	2	2	2.5	3	3.5	4	4	5	5	5

Thread Size
d

24

27

30

33

36

39

42

45

48

52

56

60

P	pitch
d_k
k
f
e

3	3	3.5	3.5	4	4	4.5	4.5	5	5	5.5	5.5
41	46	51	56	61	66	71	76	81	88	95	102
17	19	21	23	25	27	29	31	33	36	39	42
12	13.5	15	16.5	18	19.5	21	22.5	24	26	28	30
6	6	7	7	8	8	9	9	10	10	11	11
