Morse Taper Pins with External Thread

NF E 27-477 - 1972

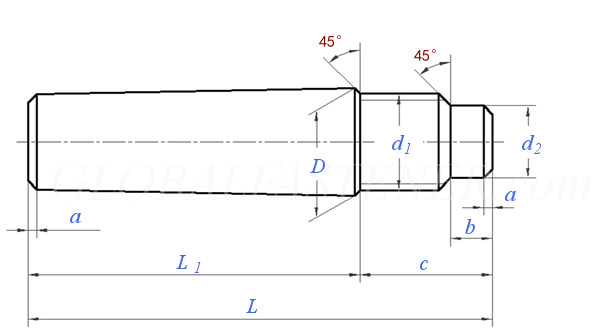

Display drawing:

法国NF E27-477 - 1972 NF27-477 27-477NF Morse Taper Pins with External Thread
Serial Number
0 1 2 3 4
D
L
L1
d1
d2
b
c
a
9.045 12.065 17.78 23.825 31.267
50 60 75 95 120
40 45 55 70 90
M8 M10 M16 M20 M24
6 7 12 16 18
3 3 5 6 8
10 15 20 25 30
1 1 1.5 1.5 1.5
