Dished Washer

NF E 27-619 - 1951

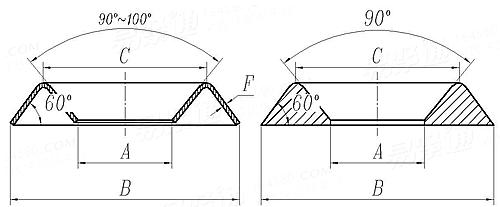

Display drawing:

法国NF E27-619 - 1951 NF27-619 27-619NF Dished Washer

Size

3

4

5

6

(7)

8

10

12

14

A	min=nominal size
	max
B	min=nominal size
	max
C	min=nominal size
	max
F

3.5	4.5	5.5	7	8	9	11	14	16
3.8	4.8	5.8	7.3	8.3	9.3	11.3	14.3	16.3
9	11	14	16	20	22	28	32	36
9.3	11.3	14.3	16.3	20.3	22.3	28.3	32.3	36.3
6.5	8	10	12	14	16	20	24	28
6.8	8.3	10.3	12.3	14.3	16.3	20.3	24.3	28.3
0.25	0.25	0.25	0.3	0.3	0.3	0.3	0.4	0.4
