(Non-preferred) dimensions in parentheses.

Taper Pins

GOST 3129 - 1970

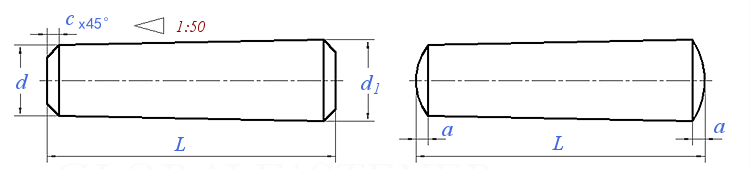

Display drawing:

Download CAD Model

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs

Default density g/cm³

Nominal Length L Tips:seclect Nominal Length L and get Weight .

Nominal Diameter
d

0.6

0.8

1.2

1.5
(1.6)

2.5

c	≈
a ^①	≈

0.1	0.1	0.2	0.2	0.3	0.3	0.5	0.5	0.6	0.8
0.08	1	0.12	0.16	0.2	0.25	0.3	0.4	0.5	0.63

Weight of per 1000 steel products(≈kg)

Nominal Diameter
d

30
(32)

c	≈
a ^①	≈

1	1.2	1.6	1.6	2	2.5	3	4	5	6.3
0.8	1	1.2	1.6	2	2.5	3	4	5	6.3

Weight of per 1000 steel products(≈kg)

①,In the standard original document, when d=0.8, a≈1.0. The value of 1.0 is too large and should be a typographical error.
