Click Specification

Unit:mm

Road Vehicles - Hydraulic Braking Systems - Part 1: Double-flare Pipes, Tapped Holes, Male Fittings and Tube Seats, Type A Male Fitting

ISO 13486-1 (A) - 1999

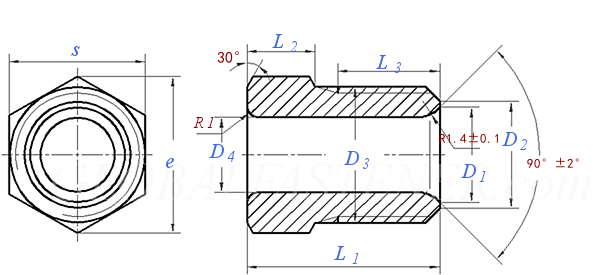

Display drawing:

国际ISO 13486-1 (A) - 1999 ISO13486-1 1348 Road Vehicles - Hydraulic Braking Systems - Part 1: Double-flare Pipes, Tapped Holes, Male Fittings and Tube Seats, Type A Male Fitting
Tube outer diameter
4.75 6.35 8 10
D4 +0.15，0
D3 6g
D1 +0.1，0
D2 ±0.2
e ≈
L1 Nominal Size
max
min
L2
L3 min
s max=nominal size
min
4.98 6.59 8.29 10.29
M10×1 M12×1 M14×1.5 M16×1.5
6.8 8.4 10.4 12.4
7.8 9.4 11.4 13.4
11.5 13.9 16.2 19.6
16 17 20.5 22.5
16.215 17.215 20.76 22.76
15.785 16.785 20.24 22.24
5 6 6 8
9 9 11.5 11.5
10 12 14 17
9.78 11.73 13.73 16.73
